High-Temperature Double Side Shielding Conductive Adhesive Copper Tape
Product description:
We can offer high-quality copper foil tapes product to our customers.
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,
isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.
In addition, electrostatic discharge after the ground has a good effect.
Paste strong, good electrical properties, according to customer requirements cut into a variety of specifications.
| Specifications |
| Item |
Unit |
Specification |
Texting Standard |
Texting Method |
Others |
| Copper Thickness |
um |
25 |
25+3 |
|
|
| Basis Weight |
g/m2 |
160 |
160+10 |
|
|
| Width |
mm |
25 |
±0.2mm |
|
|
| Copper Foil |
% |
99.99 |
99.99 |
|
|
| Glue Thickness |
um |
25 |
25+3 |
ASTM-1000 |
|
| Composition |
----- |
|
|
|
|
| Total thickness |
um |
50 |
50+5 |
|
|
| Steel Adhesion |
kg/1" |
0.8 |
0.8 |
ASTM-1000 |
Initial adhesion tester |
| Initial Adhesion |
kg/1" |
1 |
1 |
J.DOW |
Electronic Stripping Tester |
| Rentention(cohesion) |
kg/h |
48 |
48 |
PSPC-7 |
Viscosity Tester |
| Weather Resistance |
℃ |
minus10-120℃ |
minus10-120℃ |
|
|
| Inventory Condition |
----- |
----- |
temperature:25℃ |
|
|
| RH:65% |
|
|
| Insulation Resistance |
----- |
0.01-0.06 |
0.01-0.06 |
|
Low dc resistance tester |
| Inventory Validity |
|
six month |
|
|

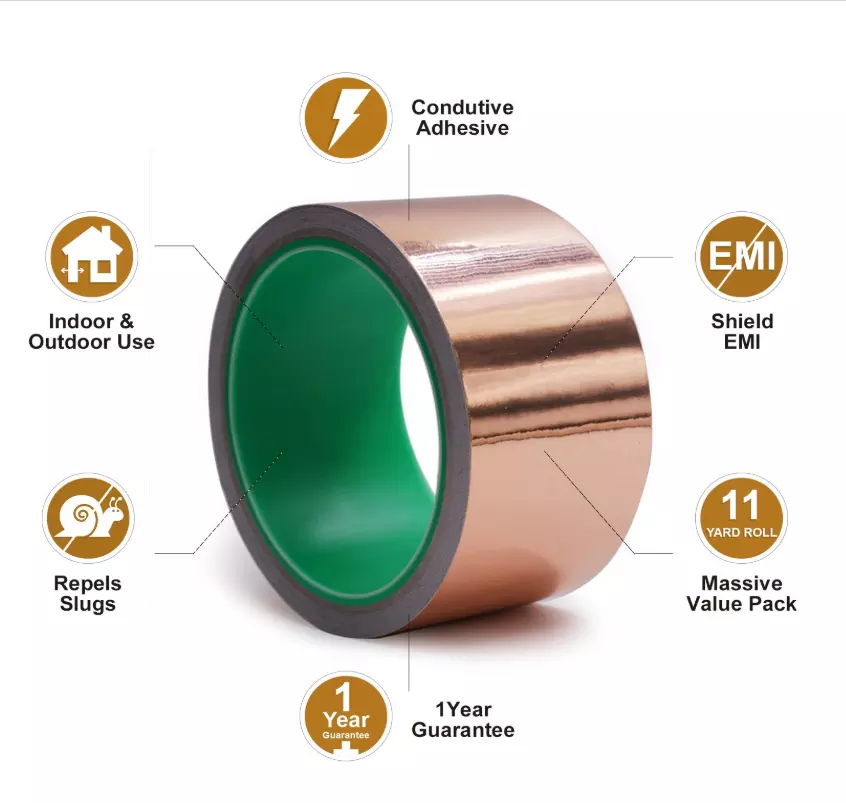

Feature:
Heat preservation, heat insulation;
Waterproof,cold and heat resistance;
Strong adhesion and easily peeled off;
EMI shielding;
UV resistance,flame retardant;
Moisture resistance,chemical and corrosion resistance;
Ideal for outdoor application and durable.
Application
1) Antistatic floor (ESD floor);
2) Shielding in housings and Faraday cages.
3) Cable shielding (Wrap around the cable);
4) Suitable for precision electronic products.
5) Electrical connection between surfaces (sheets/foils);
6) Mounting transparent foils, windows for EMI/RFI shielding.
7) Temporary shielding during emission and immunity tests

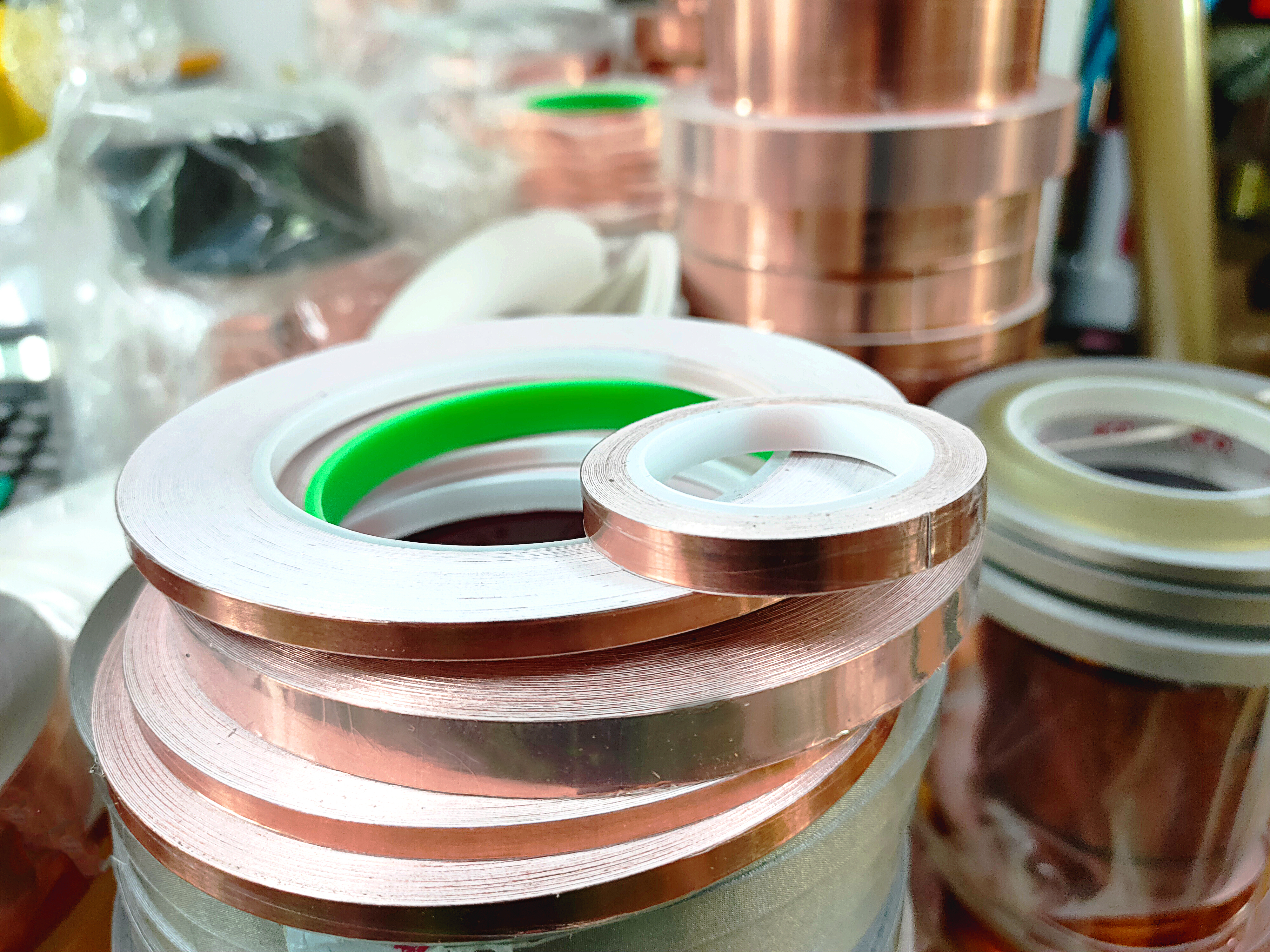

Packing Picture:
Copper foils tapes product can be packed with the roll and in carton case .
FAQ:
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc is available.
Q4. How to proceed an order for lead glass?
A: Firstly let us know your requirements or size, thickenss and also quantity.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
